Skylights
Control solar gain across individual or repeated glazed roof bays.
EXTERNAL SHADE FOR GLAZED ROOFS
Stop heat before it builds beneath the glass

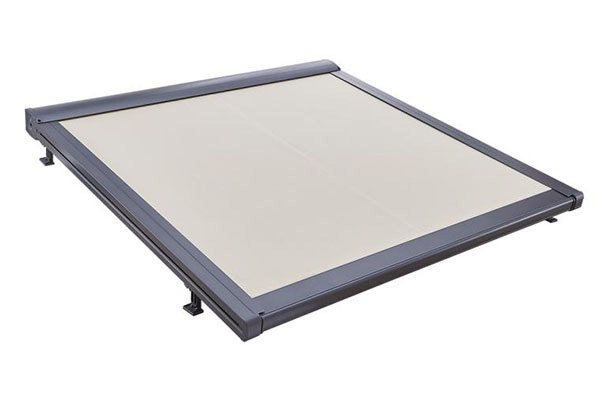

A custom tensioned roof blind that carries outdoor fabric across suitable rectangular skylights, sunrooms and glazed pergola openings.
- Custom made
- Motorised operation
- Tensioned fabric
Supply only. Delivery or collection is confirmed in the formal quote after technical review.
DESIGN THIS PRODUCT
Design your product. See the price as you build.
Enter a valid finished width and travel, then choose mounting, frame, fabric and motor side while the estimated product price updates.
- See itReview the product as you design
- Shape itSet size, finish and options
- Price itSee the estimate update live
Save this design to your HAZO Project, continue with other products, then submit everything for formal review.
YOUR DESIGN JOURNEYFour clear decisions
- 01Your sizeFinished dimensions
- 02Your finishFrame, fabric or colour
- 03Your optionsOperation · Lighting · Extras
- 04Your estimateUpdates with every choice
ESSENTIAL SPECIFICATIONS
What matters before technical review
- Product
- Fabric Roof Blind
- Finished width
- 2.0–4.5 m
- Finished travel
- 1.5–6.0 m
- Size combinations
- Up to 2.5 m wide: maximum 4.0 m travel
3.0–4.5 m wide: maximum 6.0 m travel - Operation
- DOOYA motorised only
- Mounting
- Flat mounted, adjustable flat or suspended
- Roof plane
- Flat, sloping or confirmed during technical review
- Standard frame colours
- Dark Grey · RAL 7024
White · RAL 9016 - Fabric
- Sauleda outdoor fabric; another Sauleda code may be specified
Custom RAL is available with price confirmed separately. Pricing moves to the next available width-and-travel bracket. Supporting structure, fixing points, slope, clearances and access are confirmed during technical review.
WHERE IT WORKS
Shade difficult overhead glazing
The guided system can be configured for suitable flat, sloping and suspended applications after the structure and fixing points are reviewed.
Sunrooms
Add external shade above glazed extensions and conservatory-style spaces.
Pergola glazing
Shade suitable roof openings while preserving a light, fabric-led appearance.

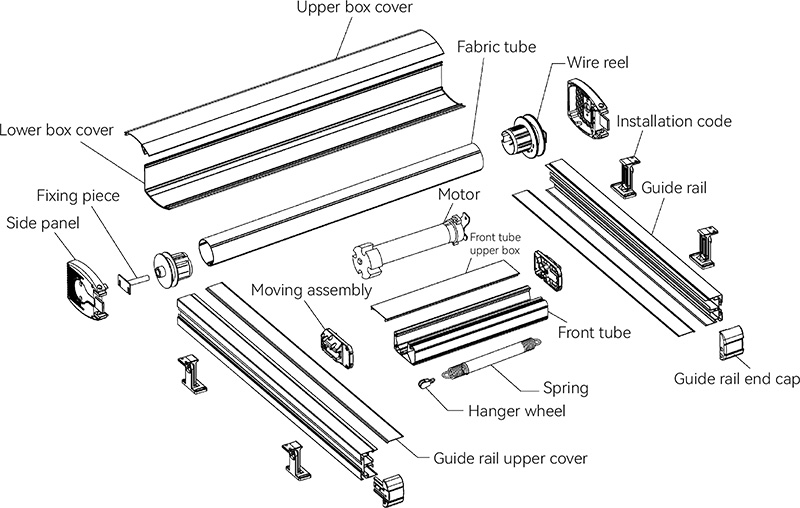

HOW IT WORKS
The fabric stays guided as it travels
01

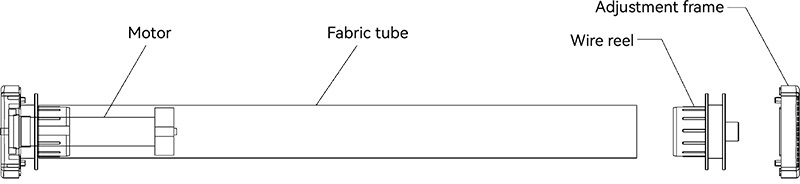

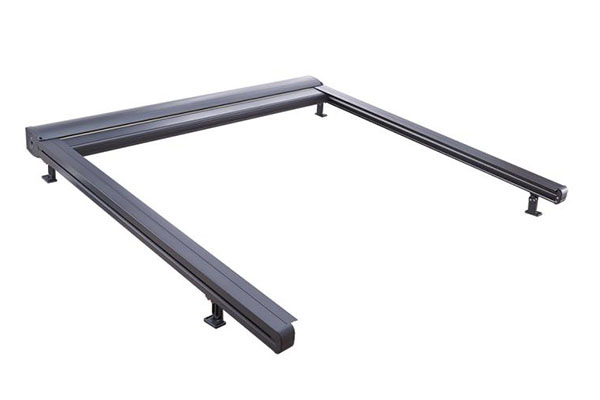

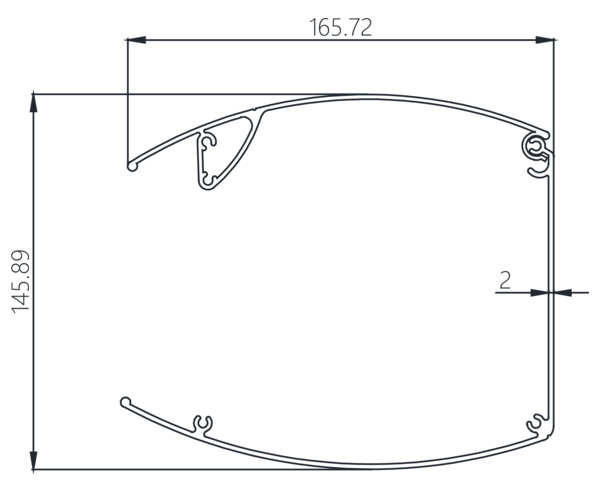

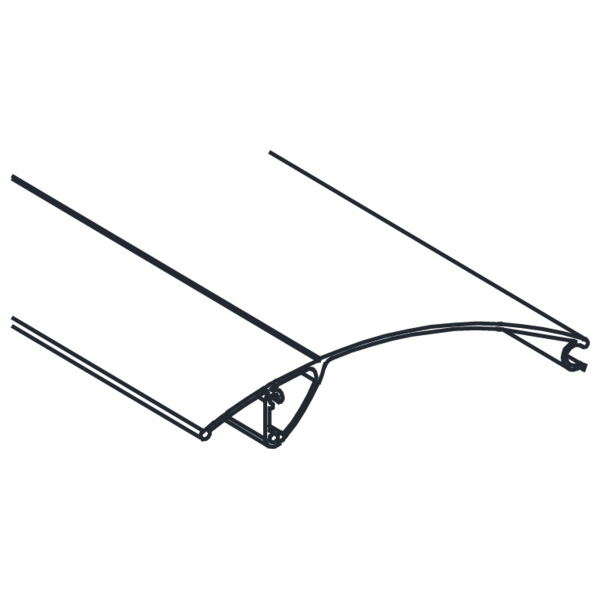

Protected roller and motorThe headbox houses the fabric tube, motor and retracted fabric.
02

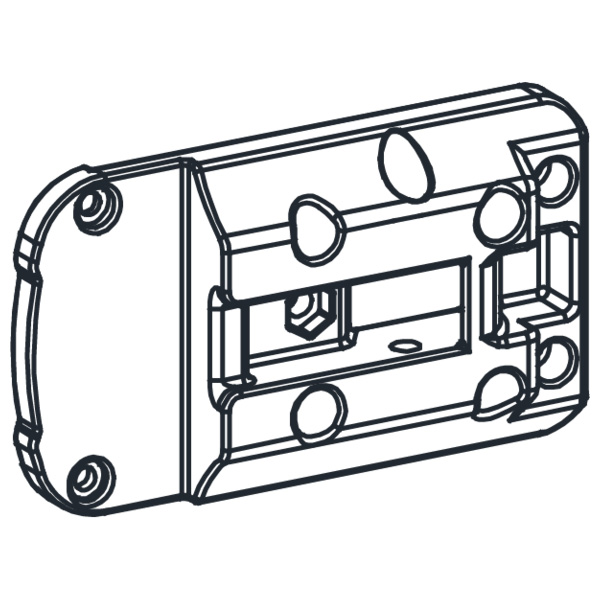

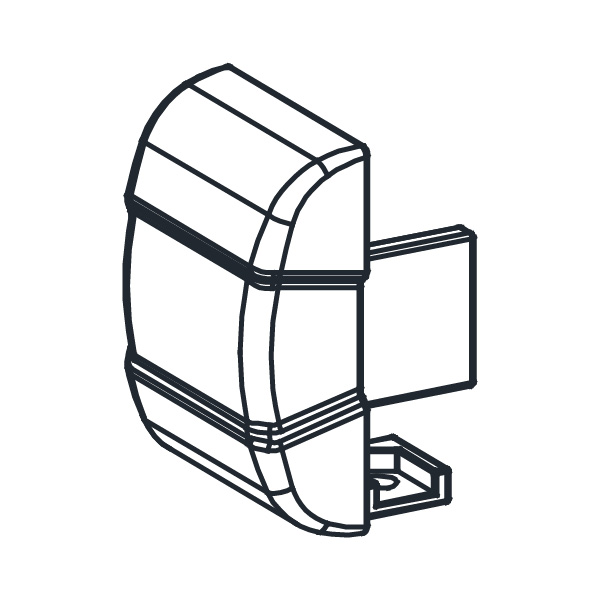

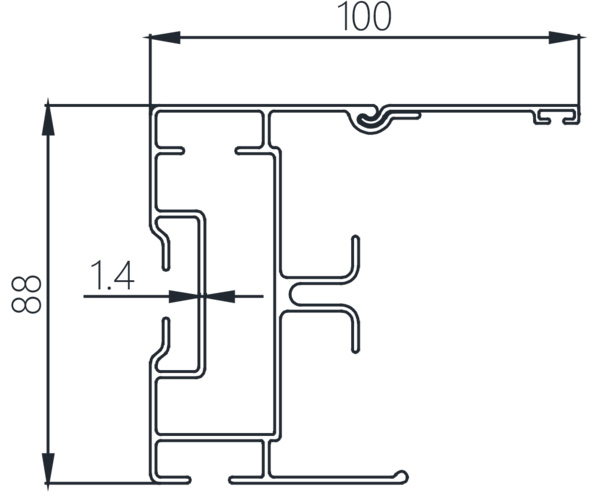

Side guide railsMoving assemblies travel within the rails to keep the front profile aligned.
03

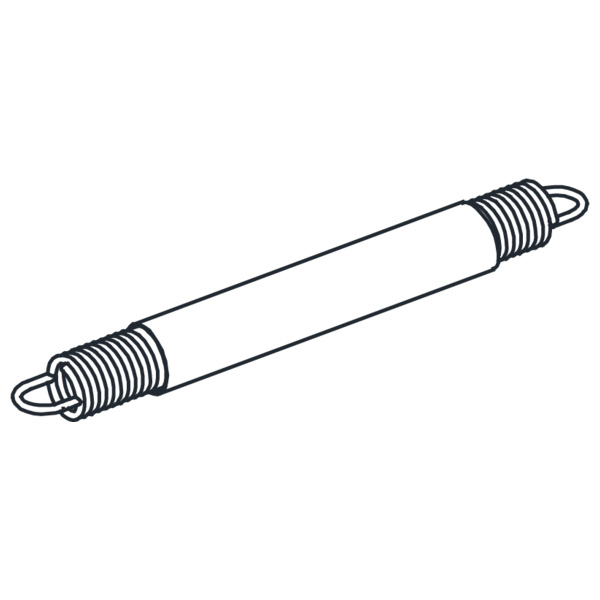

Spring tensionThe coordinated tension system helps keep the fabric extended across the opening.
04

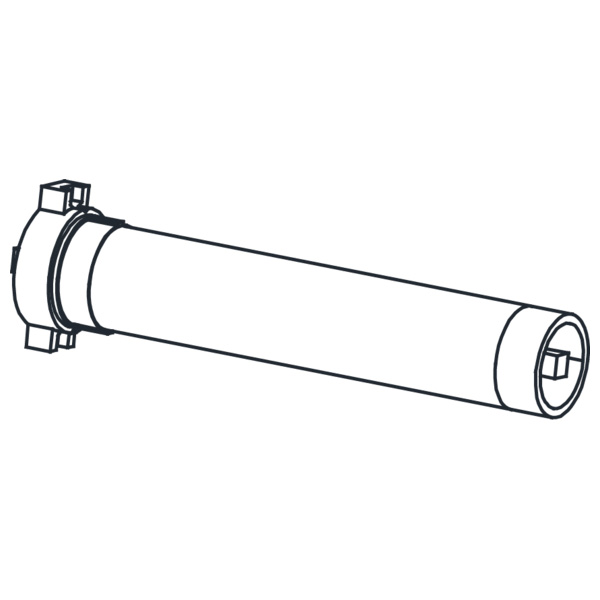

Motorised operationA DOOYA tubular motor drives the blind; the motor and power-cable exit side are confirmed before manufacture.
INSTALLATION DIRECTIONS

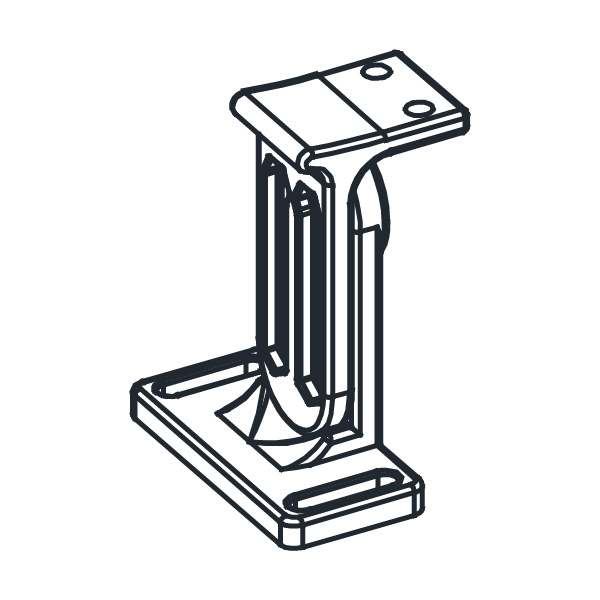

Three mounting approaches
The supporting structure, bracket locations, clearances and service access are confirmed during technical review.

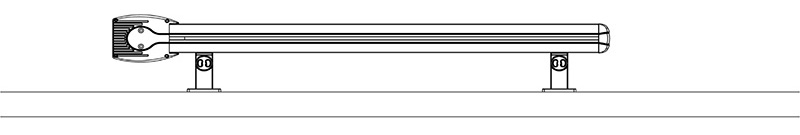

Adjustable flat
Bracket adjustment assists alignment where the mounting plane needs refinement.

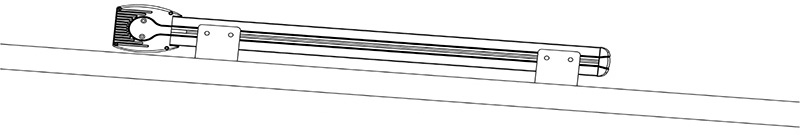

Flat mounted
Direct fixing to a suitable, accurately prepared supporting structure.

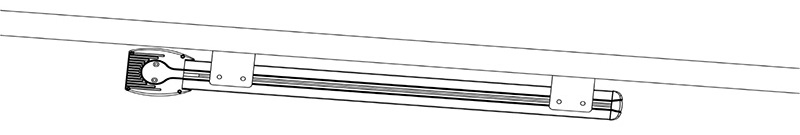

Suspended

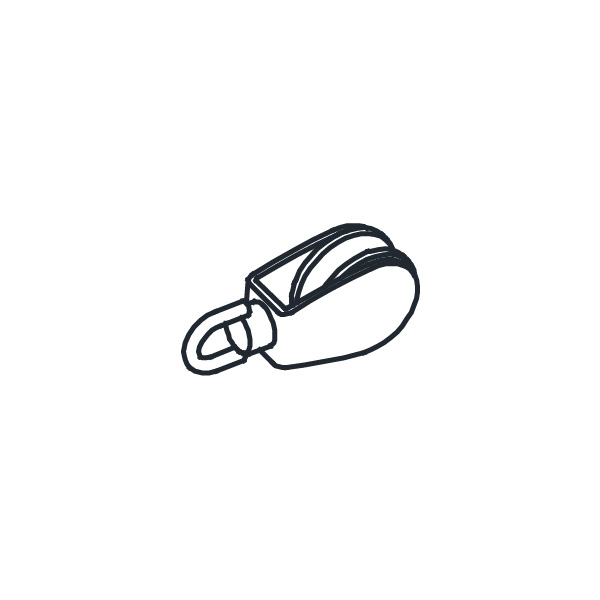

Hanging brackets support selected installations where direct surface fixing is not appropriate.
SIZE PLANNING
A controlled rectangular range, priced as a width-and-travel pair
The offered range covers finished widths from 2.0-4.5 m and travel from 1.5-6.0 m, with limits on narrower systems.
01
Offered widthRectangular systems from 2.0-4.5 m wide.
02
Narrower systemsWidths up to 2.5 m are available with travel up to 4.0 m.
03
Longer travelWidths from 3.0-4.5 m may be configured with travel up to 6.0 m.
Rectangular systems only. Exact finished size, slope, exposure, fabric, rail support and operation must be confirmed in writing.
BEFORE YOU REQUEST A QUOTE
Measure the opening and show the structure
Finished width
Measure the proposed rail-to-rail span.
Travel length
Record the full distance the blind must cover.
Roof plane
Show the flat or sloping rectangular opening.
Fixing surfaces
Clear photos of every mounting edge and support.
Operation side
Preferred motor and cable exit side.
Delivery access
Postcode, unloading and long-component access.

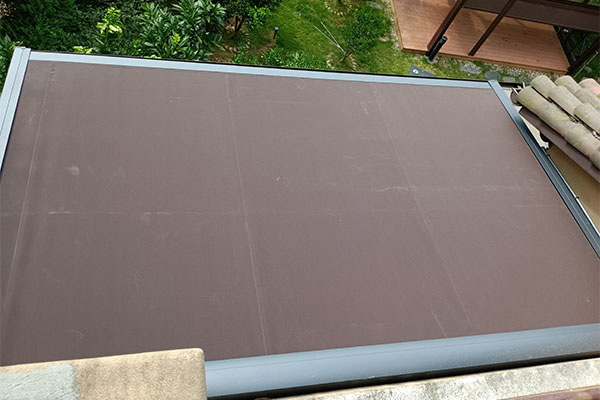

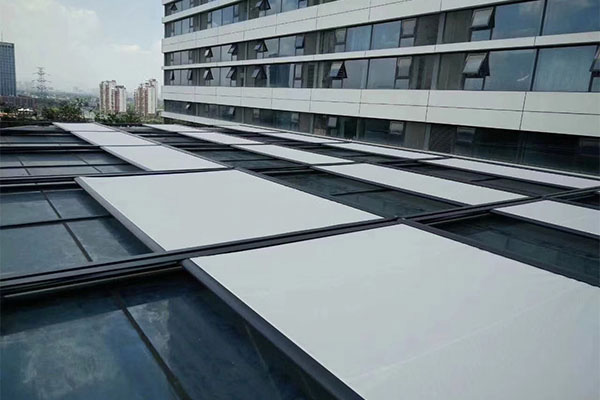

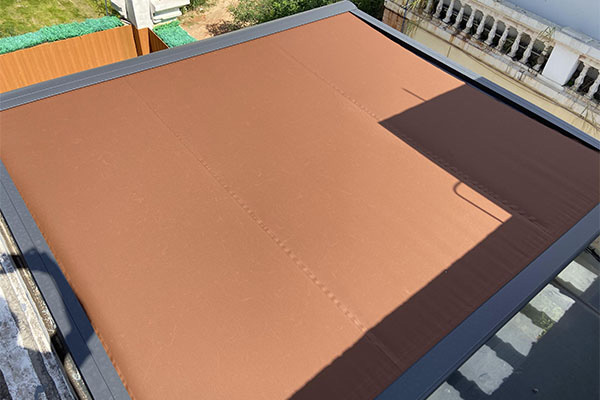

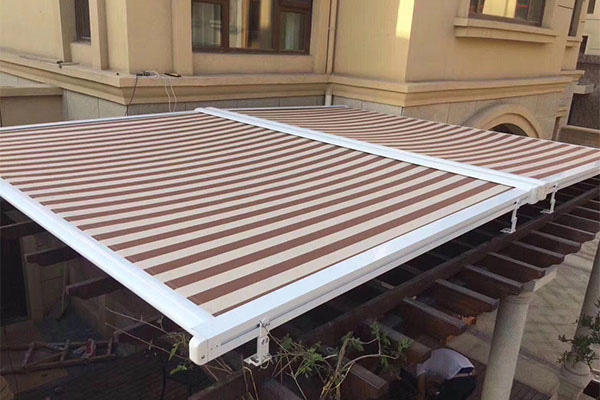

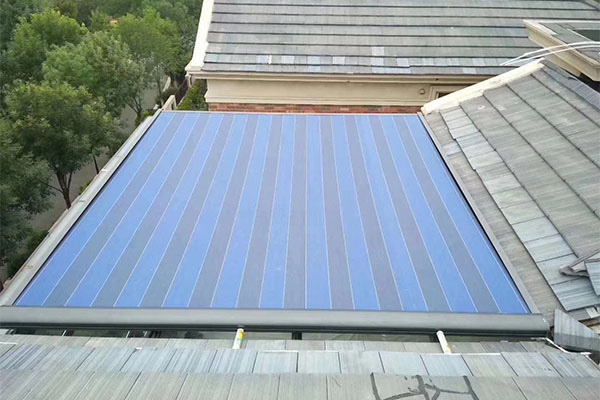

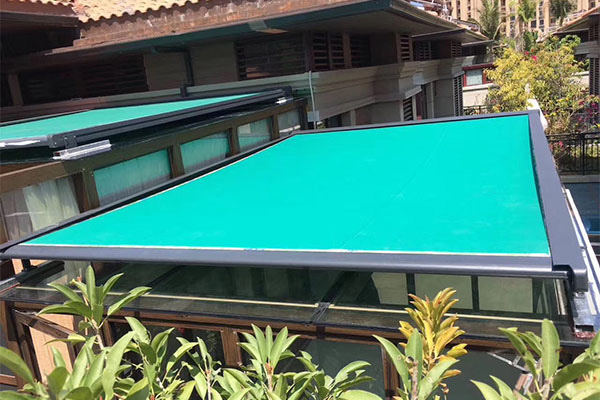

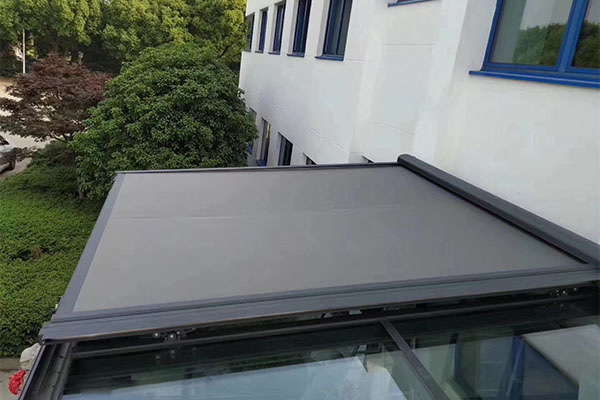

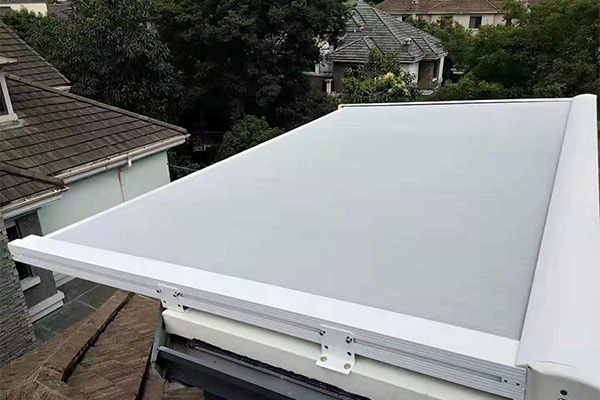

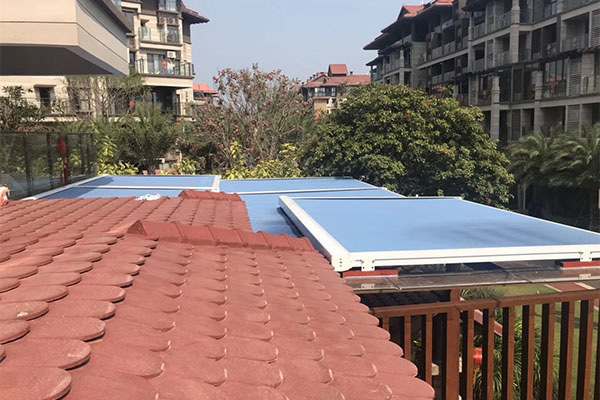

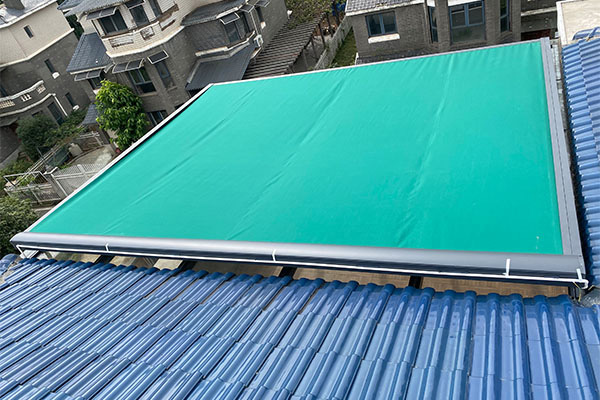

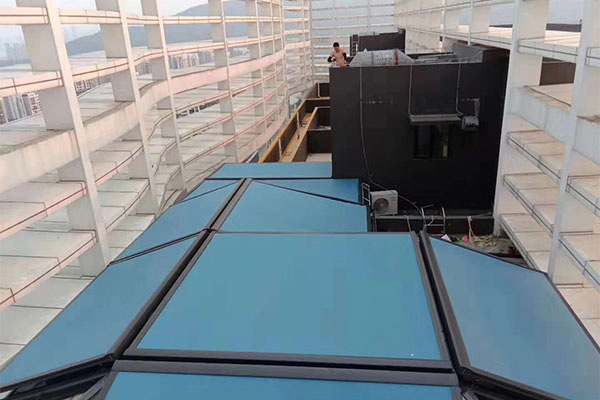

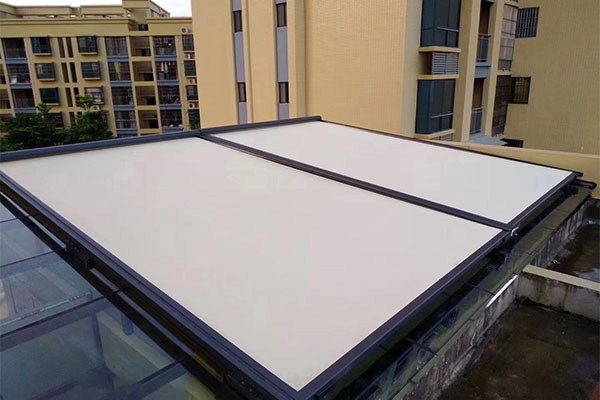

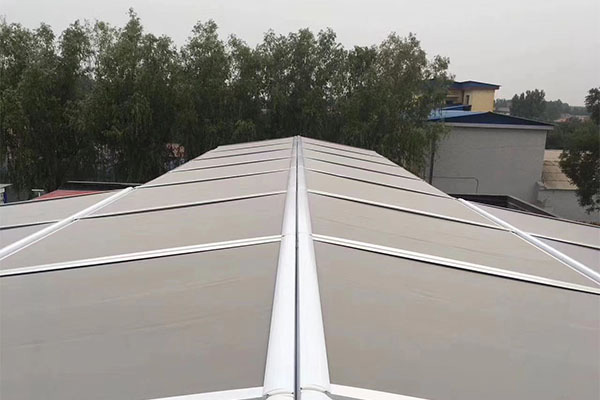

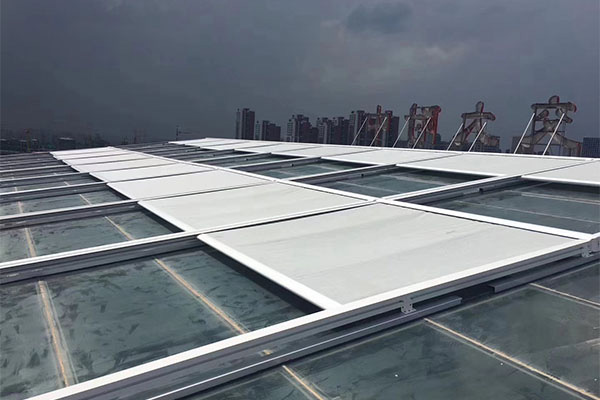

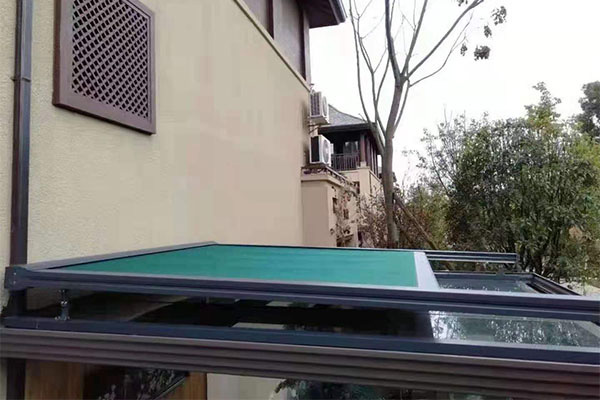

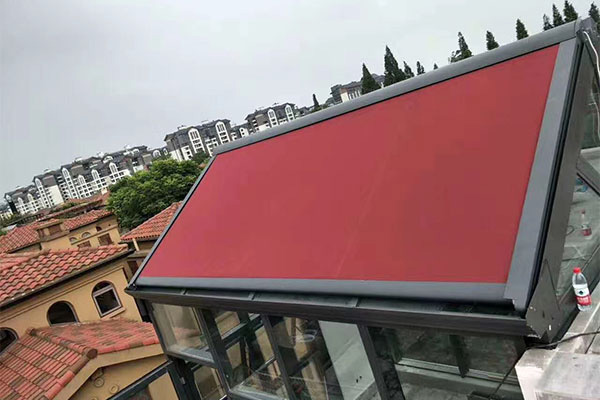

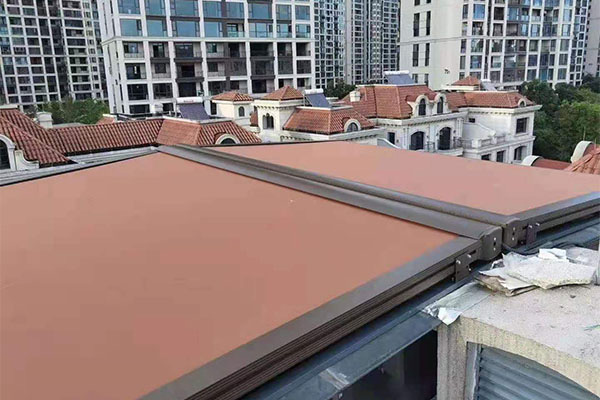

PROJECT INSPIRATION

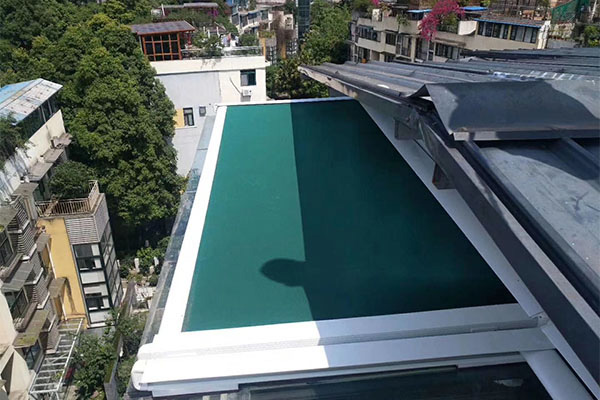

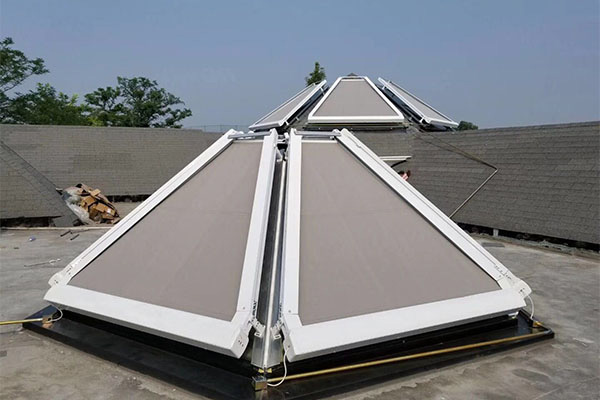

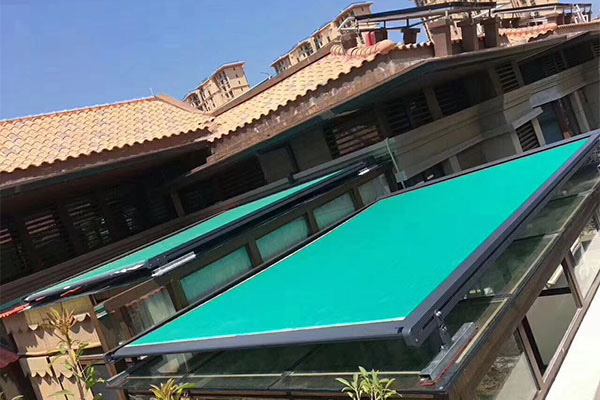

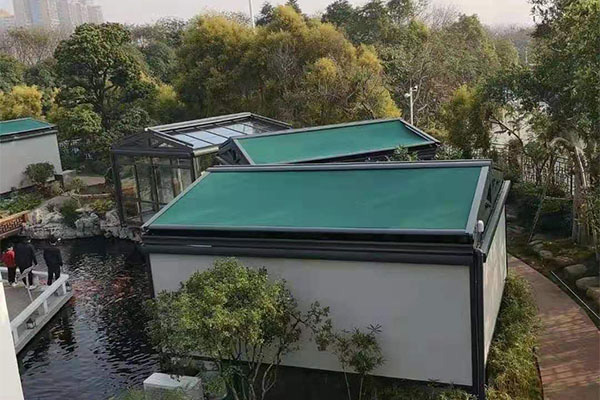

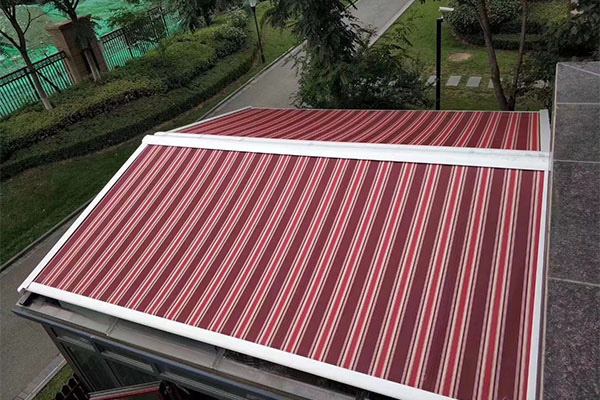

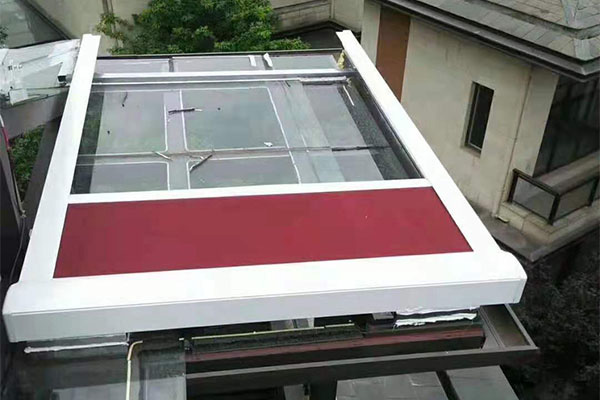

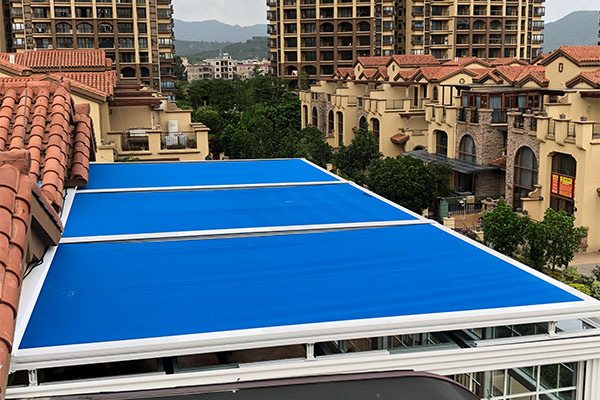

One system, many roof forms
PRODUCT CATALOGUE
Keep the planning guide
Request the Fabric Roof Blind catalogue for applications, movement, components, mounting approaches and size planning.
COMMON QUESTIONS
What customers usually ask first
Is this a rainproof roof?
No. It is an external shading product, not a waterproof roof or habitable enclosure. Water behaviour depends on fabric, slope and the surrounding roof design.
Can it be installed flat?
Suitable projects may use flat or adjustable-flat mounting, but the supporting structure, drainage and product behaviour must be reviewed first.
Can every width be combined with every travel length?
No. Longer travel requires specific width and structural combinations. The exact size pair must be confirmed before production.
Is installation included?
No. HAZO WORLD supplies the product only. Installation must be arranged separately by a suitably experienced installer.
