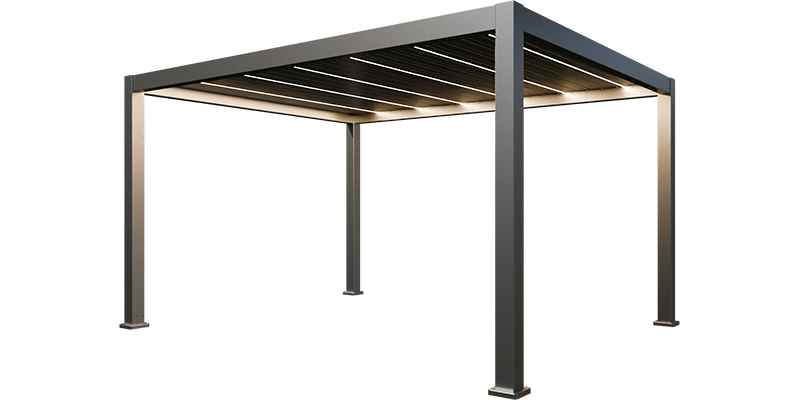

ACCESSIBLE RESIDENTIAL STARTING POINT
Lite
A lighter visual profile and the most accessible price position for patios and everyday residential projects.
- Series
- Lite
- Envelope
- Up to 3.5 × 4.0 m
- Best fit
- Compact residential spaces
ROTATING LOUVRE PERGOLA
Three structural levels. One proven roof movement.
Lite, Flex and Pro share the same rotating roof principle. Lite and Flex can use manual operation on eligible areas up to 10 m²; larger sizes and every Pro configuration are motorised.
Choose by span, structure and budgetCustom made for each projectLite · Flex · Pro
Supply only. Delivery or collection is confirmed in the formal quote after technical review.
DESIGN THIS PRODUCT
Design your product. See the price as you build.
Choose Lite, Flex or Pro, set the finished footprint, then confirm the available manual or motorised operation and lighting lengths.
- See itReview the product as you design
- Shape itSet size, finish and options
- Price itSee the estimate update live
Save this design to your HAZO Project, continue with other products, then submit everything for formal review.
YOUR DESIGN JOURNEYFour clear decisions
- 01Your sizeFinished dimensions
- 02Your finishFrame, fabric or colour
- 03Your optionsOperation · Lighting · Extras
- 04Your estimateUpdates with every choice
CHOOSE YOUR SERIES
Lite, Flex or Pro?
The operating experience is almost identical. The important differences are profile size, material thickness, structural capacity, maximum span and price position.
BALANCED STRENGTH AND VALUE
Flex
Larger louvres, beams and columns for broader residential areas and many commercial applications.
- Series
- Flex
- Envelope
- Up to 4.0 × 6.0 m
- Best fit
- Larger residential & commercial
MAXIMUM SPAN AND STRUCTURAL PRESENCE

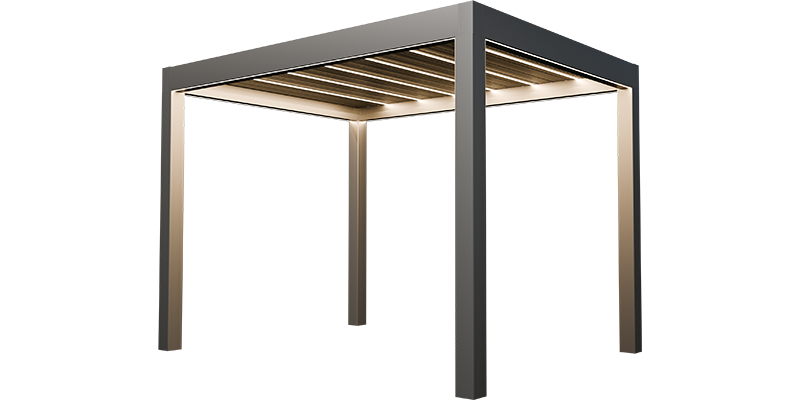

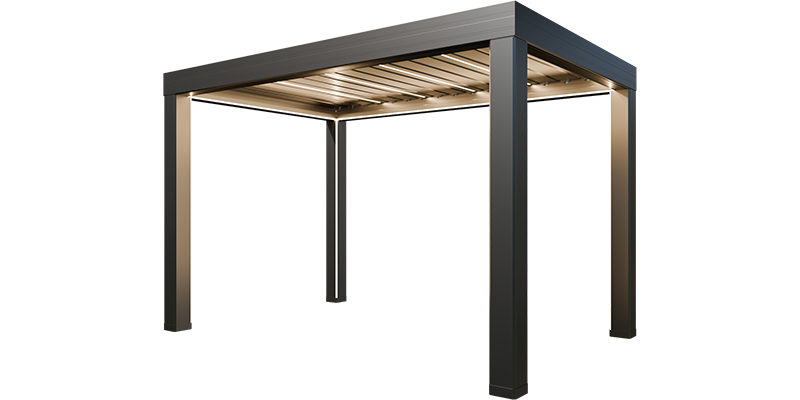

Pro
Upgraded beams and columns provide greater structural capacity and a maximum span of up to 7 metres.
- Series
- Pro
- Envelope
- Up to 4.0 × 7.0 m
- Best fit
- Large premium projects
Not sure which series fits? Send the approximate footprint, finished height, postcode and a few site photos. We will recommend the appropriate structural level before preparing a quotation.
QUICK COMPARISON
What changes between the three series
| Consideration | Lite | Flex | Pro |
|---|---|---|---|
| Roof movement | Rotating only | Rotating only | Rotating only |
| Operation | Manual up to 10 m² or motorised | Manual up to 10 m² or motorised | Motorised only |
| Maximum module | 3.5 × 4.0 m | 4.0 × 6.0 m | 4.0 × 7.0 m |

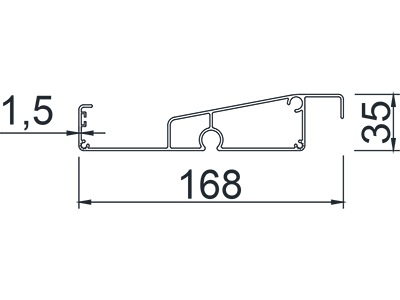

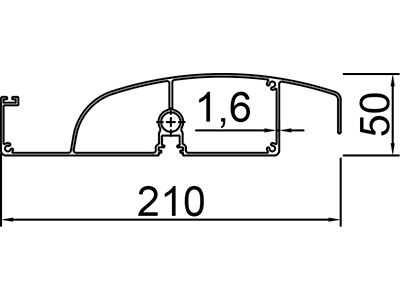

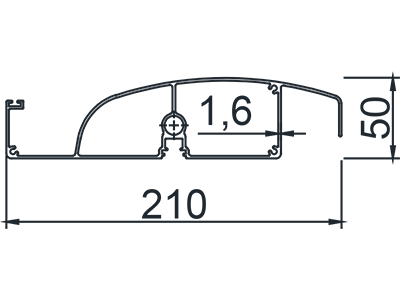

| Louvre | 168 × 35 × 1.5 mm | 210 × 50 × 1.6 mm | 210 × 50 × 1.6 mm |

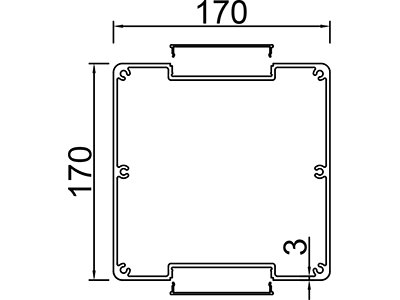

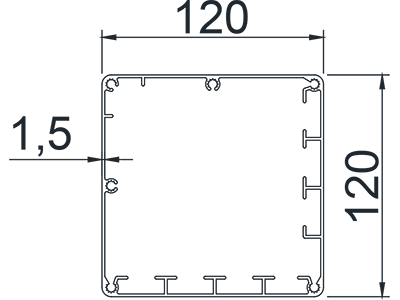

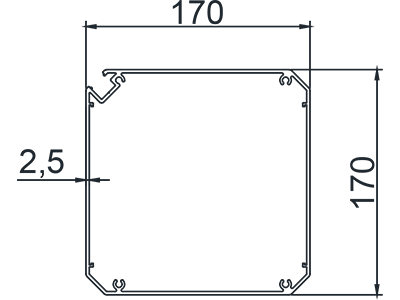

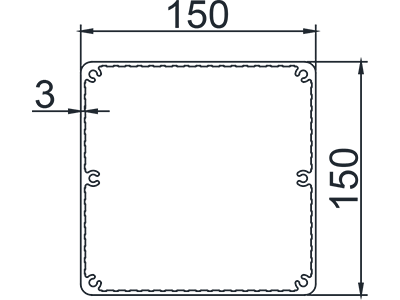

| Column | 120 × 120 × 1.5 mm | 150 × 150 × 3.0 mm | 170 × 170 × 3.0 mm |
| Price position | Most accessible | Mid-range balance | Premium structural level |
Project confirmation required. Maximum dimensions depend on the final structure, site conditions, wind exposure, fixing, drainage, access and the written quotation.
SHARED ROOF MOVEMENT
Open, angle or close the louvres
All three series rotate their aluminium louvres. The available manual or motorised drive depends on the selected series and finished area.
Open
Bring daylight and airflow into the space.
Angle
Balance useful shade with ventilation.

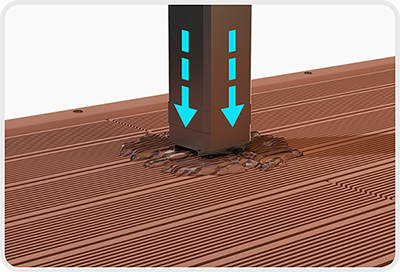

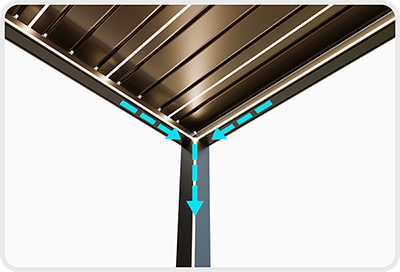

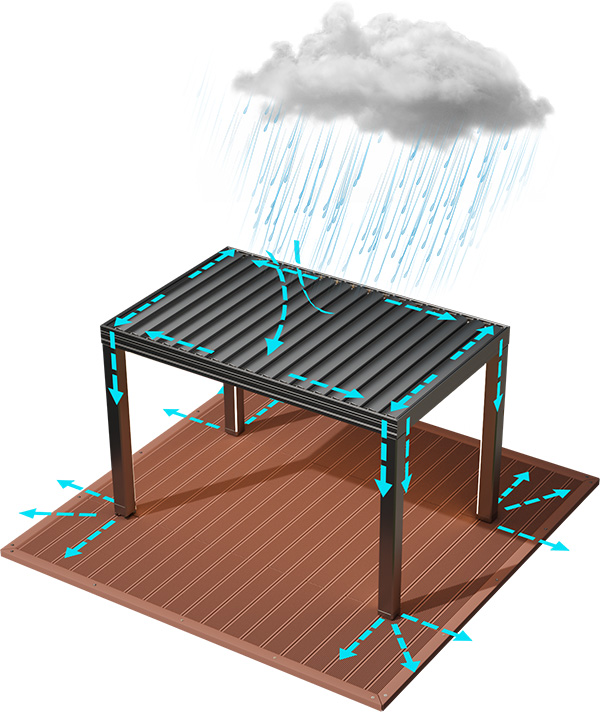

Close & drain

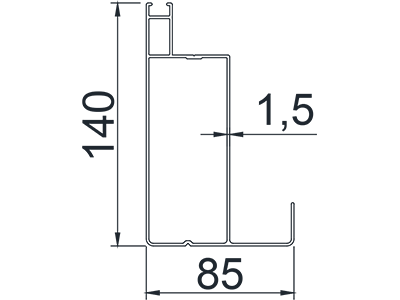

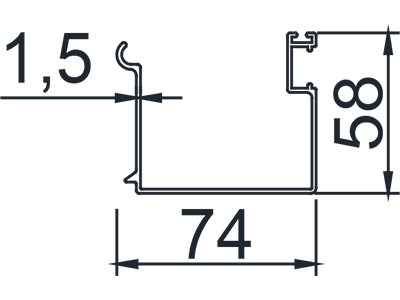

Direct rainwater into perimeter gutters and hollow posts.
Weather guidance: rain protection depends on correct design, installation, drainage, maintenance and operating conditions. A louvre pergola is not a habitable waterproof roof.
ONE COMBINED PRODUCT CATALOGUE
Compare all three rotating series
The Rotating Louvre Pergola catalogue brings Lite, Flex and Pro together in one guide.
PREPARE FOR TECHNICAL REVIEW
Six details start a useful quotation
1FootprintOverall width and span
2HeightFinished post and roof level

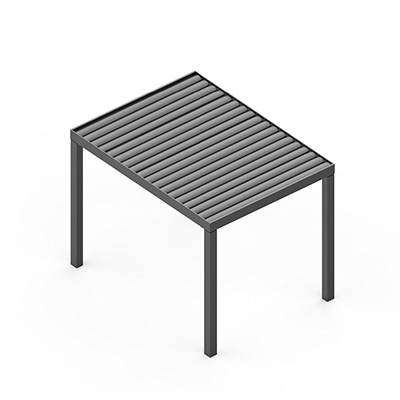

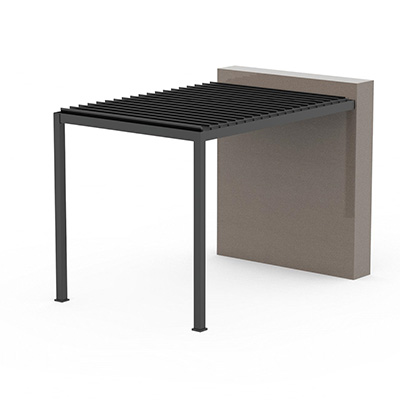

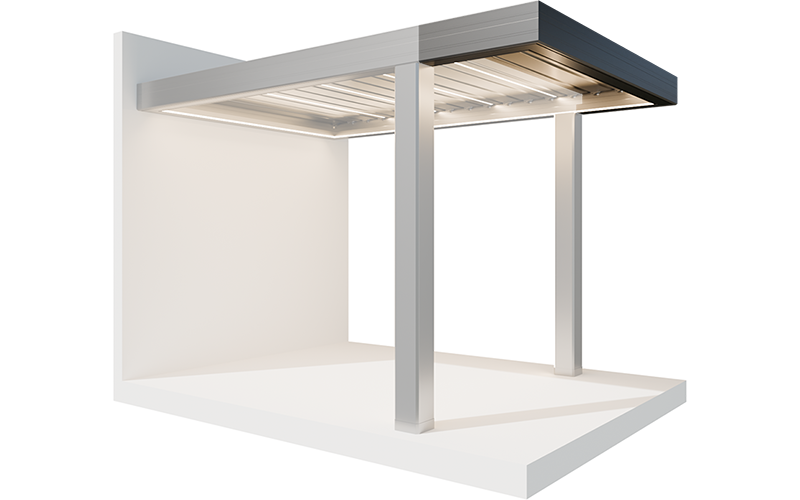

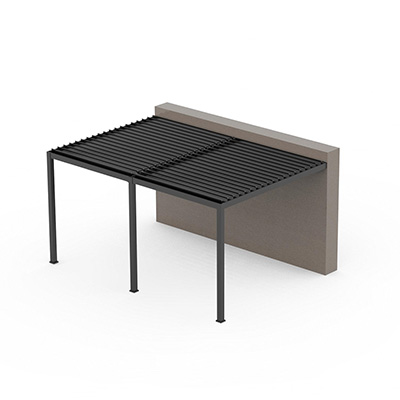

3LayoutFree-standing or wall-connected
4FixingsSlab, footing and adjacent structure
5ServicesPower and water discharge
6DeliveryPostcode, access and unloading
Which series should I choose?
Lite suits compact and value-led residential projects. Flex balances larger profiles and price. Pro provides the strongest structure and the longest span.
Do the louvres retract?
No. These three products rotate their blades but do not retract the roof. Choose the separate Retractable Louvre Pergola for a true open-roof mode.

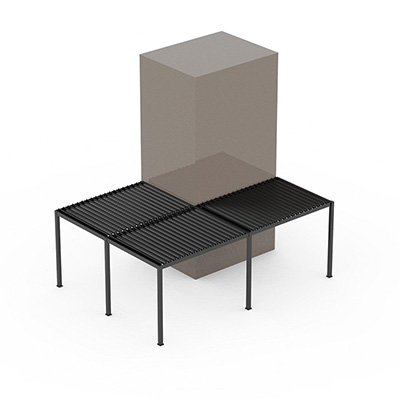

Can several modules be joined?
Yes. Larger covered areas can use reviewed multi-module layouts. Share the overall footprint so posts, gutters and module joints can be considered together.
